DIN345 HSS Morse Taper Shank Drill Bits

Using a Morse taper (MT) shank drill bit requires precision to ensure concentricity. First, ensure both the drill shank and the machine spindle (or tailstock) are completely free of oil, chips, and debris. Align the tang (the flat end of the shank) with the slot in the spindle. Insert the bit firmly with a sharp upward or inward motion. For industrial heavy-duty drilling, always verify that the MT size (MT1 to MT6) matches your equipment’s Morse taper sleeve to prevent slippage during high-torque operations.

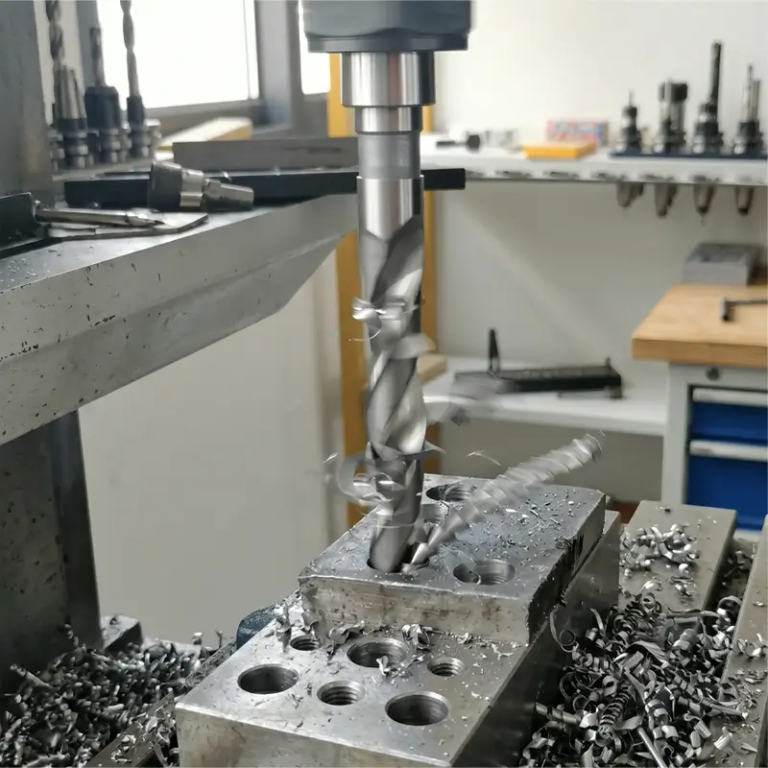

Taper shank drill bits are designed for heavy-duty, high-torque industrial applications.It is mainly used for heavy-duty drilling on machines such as drill presses and lathes. It is ideal for machining steel, cast iron, and other metals where strong holding force and precise alignment are required.

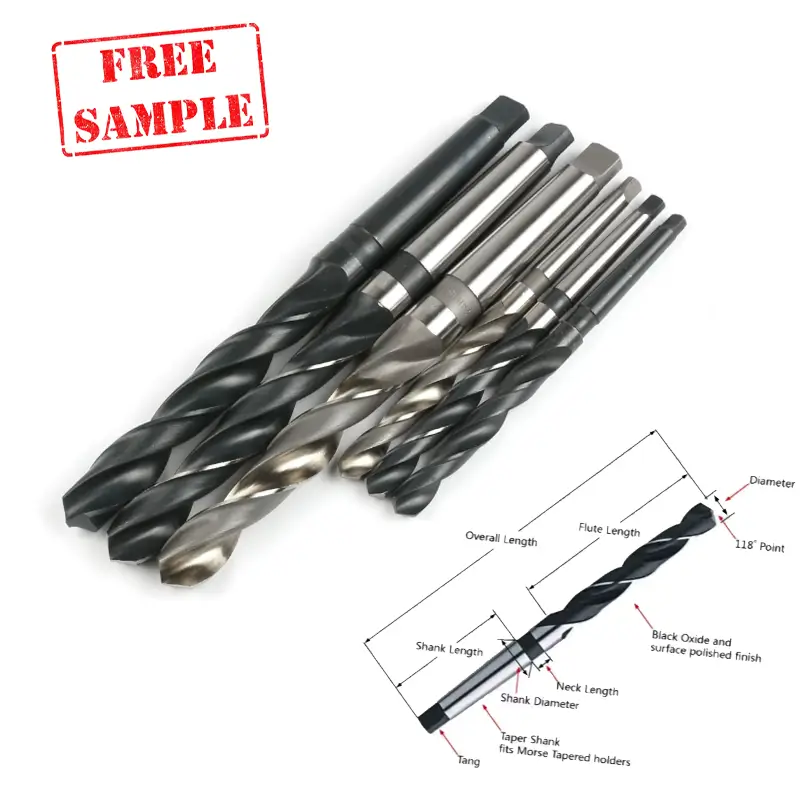

Straight shank drills are the standard for hand drills, drill presses, and CNC machining centers. Taper shank drills (DIN 345, DIN 1870) use a Morse Taper (MT) — a precision-ground conical shank that is pressed into a matching taper bore in the machine spindle. There is no chuck

The taper shank is inserted into the machine spindle or adapter sleeve. A slight push or rotation helps seat the taper firmly, allowing friction to lock the drill in place without additional clamping.

To safely remove an MT drill bit, a Drill Drift (also known as a taper drift or drift key) is required.

Never place taper shank tools, such as large-diameter drills or taper shank reamers, in a drill chuck. Only straight shank tools, such as standard drills, are suitable for chuck clamping. Always ensure the drill shank, sleeve, and spindle hole are clean before mounting.
